XL Synchronous Belt
Description
What is a Timing belt(synchronous belt)?
Timing belts are toothed belts in which power is transmitted through positive engagement between the belt teeth and a timing pulley (toothed pulley).
In timing belt transmission system (synchronous belt drive system), the belt groove and the pulley groove mesh to transmit motion and power, which is a type of meshing transmission.
According to timing belt drive design manual or timing belt catalog, appropriate timing belt tension can provide corresponding transmission capacity and power.It has various characteristics of gear transmission, chain transmission, and flat belt transmission.Compared to chain, synchronous belts are more compact, lighter, quieter, require no lubrication and operate at higher speeds.Herz synchronous drive systems offer quiet, efficient and maintenance free operation.

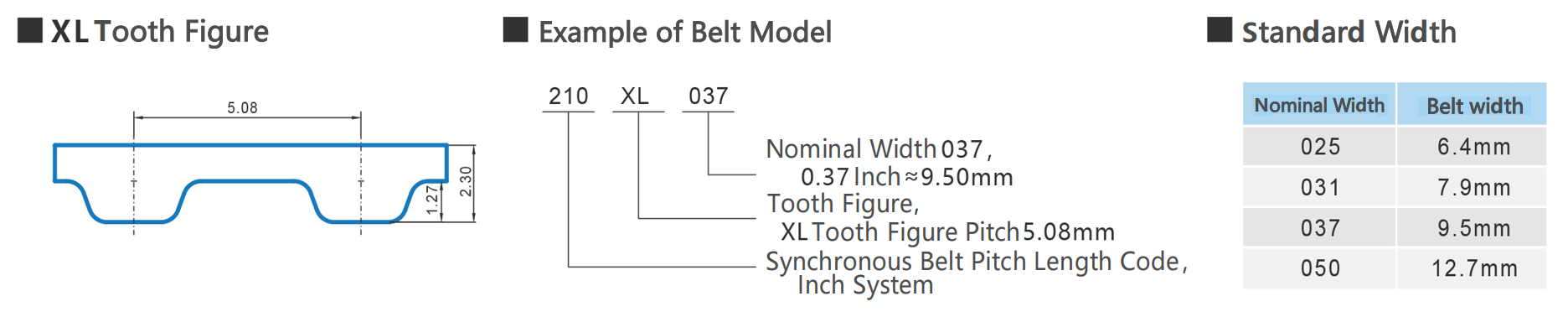

- Module: XL
- Pitch: 5.080mm
- Color: Black
Benefits of Timing Belts
1. Accurate transmission, no sliding, with constant transmission ratio;
2. Smooth and stable transmission, with buffering and vibration reduction capabilities, and low noise;
3. High transmission efficiency, with obvious energy-saving effect;
4. Convenient maintenance, no need for lubrication, and low maintenance costs;
5. The speed ratio range is large, usually up to 10, and the linear speed can reach 50m/s, with a large power transmission range of several watts to several hundred kilowatts;
6. Can be used for long-distance transmission, with a center distance of over 10m;
7. No pollution, can work normally in places where pollution is not allowed and the working environment is relatively harsh.
Structure of Timing Belts
- Belt body: high quality synthetic CR rubber
- Reinforcement: excellent quality fiber glass cord
- Belt teeth: protected by highly wear resistant nylon elastic fabric
Applications of Timing Belts
Belts for machines used in wide fields of automobiles, textiles, printing and packaging equipment, sewing equipment, office equipment, laser engraving equipment, tobacco, financial machinery, communication, food machinery, medical machinery, steel machinery, petrochemical industry, instruments and meters, various precision machine tools, and various automation equipment.
HERZ --Timing belt manufacturers & suppliers in China
In the field of transmission products, Herz has rich experience in R&D and manufacturing.In the development of more than 20 years, we have adhered to innovation, built a strong R&D team, and continuously invested in technology and R&D to promote the company to continue to move forward, break through material barriers, and constantly improve the performance and competitiveness of products, so that our products have more stable quality and longer service life.
同步带的优点
1. 传动效率高，节能效果明显；
2. 传动精确，无滑动，传动比恒定；
3. 维护方便，无需润滑，维护成本低；
4. 传动平稳，具有缓冲和减震功能，噪音低；
5. 可用于远距离传输，中心距离可达 10 米以上；
6. 无污染，可在不允许有污染、工作环境相对恶劣的地方正常工作;
7. 速比范围大，一般可达 10，线速度可达 50m/s，功率传输范围大，从几瓦到几百千瓦。
同步带的结构
1.带体：优质合成 CR 橡胶
2.增强材料： 优质玻璃纤维线
3.带齿： 由高耐磨尼龙弹性织物保护
同步带的应用
用于汽车、纺织、印刷和包装设备、缝纫设备、办公设备、激光雕刻设备、烟草、金融机具、
通信、食品机械、医疗机械、钢铁机械、石化工业、仪器仪表、各种精密机床和各种自动化设备等广泛领域的机械皮带。
HERZ — 中国同步带优势制造商
在传动产品领域，Herz 拥有丰富的研发和制造经验。在 20 多年的发展中，我们坚持创新，打造了一支强大的研发团队，并在技术和研发方
面持续投入，推动公司不断向前发展，突破材料壁垒，不断提高产品的性能和竞争力，使我们的产品具有更稳定的质量和更长的使用寿命。
